Jacob® Cable Glands and Cable Entry Systems 

The PERFECT cable gland’s lamellar sealing insert offers a large clamping range. In addition to a large selection of standard versions, two different EMC versions are available. Protection classes are IP68 and IP69K; the size range spans M12 to M63, with eight different thread sizes.

Features:

• Cable protection
• Large clamping range
• UV, ozone, and weather resistance – fit for outdoor applications
• Waterproof up to 50 meters, IP68 compliant (5 bar)

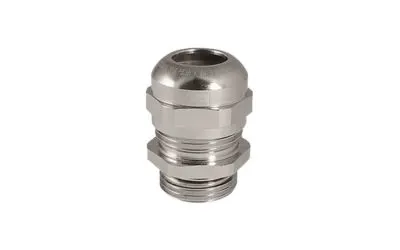

PERFECT plus Ex cable glands are intended for use in potentially explosive atmospheres. Their internal double sealing protects cables in both indoor and outdoor applications.

Features:

• Large sealing and clamping range
• Gentle on cables, prevents cable distortion
• Easy installation
• Suitable for temperature ranges from -40 °C to +85 °C
• Protection grade IP66 / IP68 (10 bar, for 30 min)

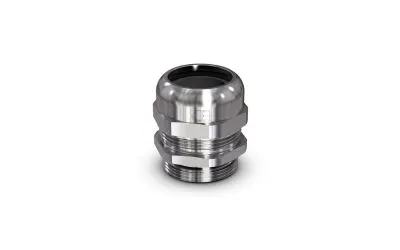

The WADIone cable gland is suitable for mechanical engineering, electrical and electronic enclosures, and certain outdoor applications. The sealing insert ensures premium cable protection. The WADIone series is available in both brass and stainless steel.  

Features: 

• Cable protection 
• Large sealing area and clamping range 
• UV, ozone, and weather resistance – fit for outdoor applications 
• Waterproof up to 100 meters, IP68 compliant (10 bar, for 30 min) 
• High strain relief 

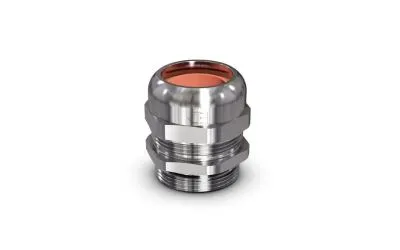

This brass cable gland is equipped with a sealing insert that meets the highest fire resistance requirements according to UL 94 V-0. The application temperature range is between -60 °C and +100 °C. The WADIrail is often used in rail vehicles, electrical installations, and tunnel construction, as well as other outdoor applications where weather resistance, fire resistance, and UV protection are crucial.  

Features: 

• Superior fire resistance performance 
• Large sealing protection and clamping range 
• UV, ozone, and weather resistance – fit for outdoor applications 
• Halogen-free 
• Very high strain relief 

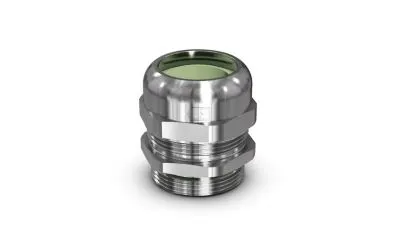

WADIheat is made for high temperatures and temperature fluctuations from -40 °C to +200 °C. This cable gland is the ideal solution for extreme environments like heating systems. The dome nut and gland body are available in both brass and stainless steel.  

Features: 

• For environments with extreme temperatures 
• UV, ozone, and weather resistance – fit for outdoor applications 
• Large sealing area and clamping range protect cables against chemicals or other aggressive materials 
• Very high strain relief 

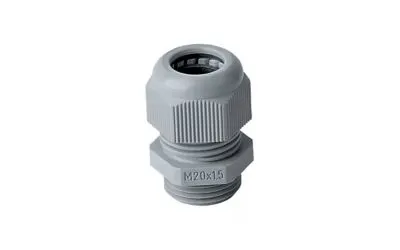

PERFECT plastic cable glands provide a wide range of applications in mechanical and plant engineering, as well as in measurement, control, and regulation technology. They offer safe, reliable connections even under high mechanical, dynamic, thermal, and chemical stresses. 

Features: 

• Easy installation 
• Integrated strain relief 
• Large sealing and clamping range 

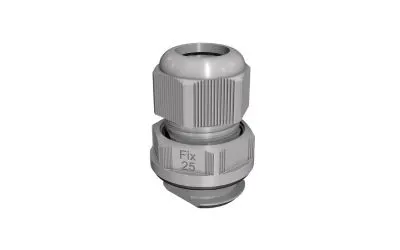

The quick cable gland without threads. The PERFECT FIX is a simple and efficient cable gland that is particularly useful in tight spaces. It can be fitted from one side of the enclosure/housing without the need for additional lock nuts. The quick and easy assembly also saves time and money. 

Features: 

• Manual assembly, no tools required 
• Quick and easy installation from one side, without a locknut 
• Perfect for tight spaces 
• For wall thickness 1–4 mm 
• Strain relief 

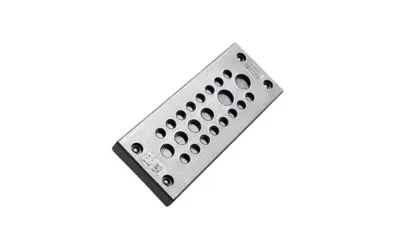

The KADP cable entry plate is used to insert and seal cables in enclosures, machines, and control cabinets. It is highly flexible and can be used for diverse applications. The plate is perfect especially where space is limited, as several cables can be inserted. The optimal arrangement of the cable entries in the KADP ensures a high packing density.  

Installing the KADP plate into an enclosure happens with a single click. Then you simply push the cables through the membranes and the job is done – effortless and time-saving.  

Features: 

• Tool-free installation 
• Suitable for temperatures from -30 °C to +100 °C 
• Clamping range of 3–20 mm 
• For cables, tubes, and pneumatic and hydraulic pipes 

Jacob’s KADL is the perfect solution when you need to insert pre-assembled cables into an enclosure. The KADL is installed with just one click – easy and time-saving. In addition, the KADL can be enlarged and adapted. The modular design allows a step-by-step installation of 5 to 25 cables in one housing wall, ensuring flexibility. A clamping range of 3 to 32.5 mm can be covered with just 16 sealing grommets, which provide a high level of strain relief.

Features:

• Tool-free installation
• Suitable for temperatures from -30 °C to +100 °C
• Clamping range of 3–32.5 mm
• Modular design and expandable to up to 25 feedthroughs
• Strain relief can be further improved with a cable tie

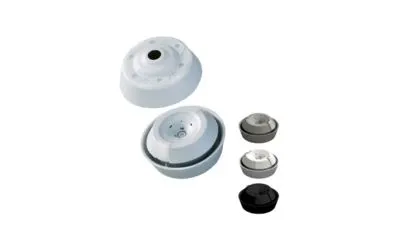

Jacob® sealing grommets provide a large cable sealing range. Their “pushout” membrane ensures that there is always a round opening. In addition, they have a movable sleeve around the center of the openings, which adapts to the cable and provides an excellent seal, even when the cable is moved. Cables can pass through very well at an angle. The design ensures that the sealing grommets stay in place, even for the installation of large cables.

Features: 

• Simple and time-saving installation 
• “Pushout” membrane ensures round opening 
• Halogen-free 
• Dustproof and waterproof 
• Sealing function 
• Long service life 

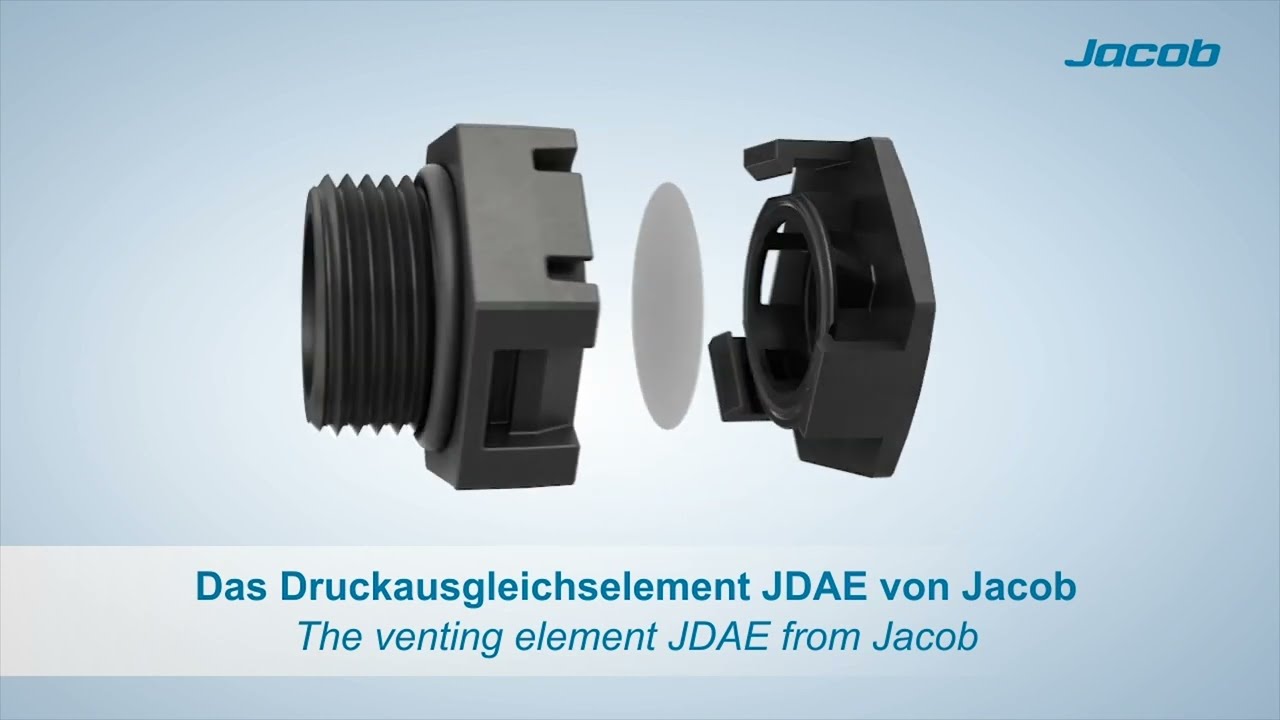

Waterproof enclosures with high protection grades IP67 or IP68 for outdoor use are not automatically sealed against vapor and humidity. To avoid negative pressure, high humidity, and condensation inside the enclosure, you therefore need to ensure continuous ventilation and equalize the pressure. This can be achieved with a venting element. 

The body of the venting element is made from flameproof polyamide PA6 or stainless steel. The inside contains a high-quality, breathable, and watertight PES membrane, which provides continuous ventilation as well as pressure exchange and protects the enclosure against humidity.

Features:

• Protection for hermetically sealed electrotechnical and electronic enclosures  
• Prevents condensation from alternating temperatures and pressure 
• Provides continuous ventilation and pressure exchange 
• Hydrophobic and oleophobic PES membrane 
• Quick and easy to install
